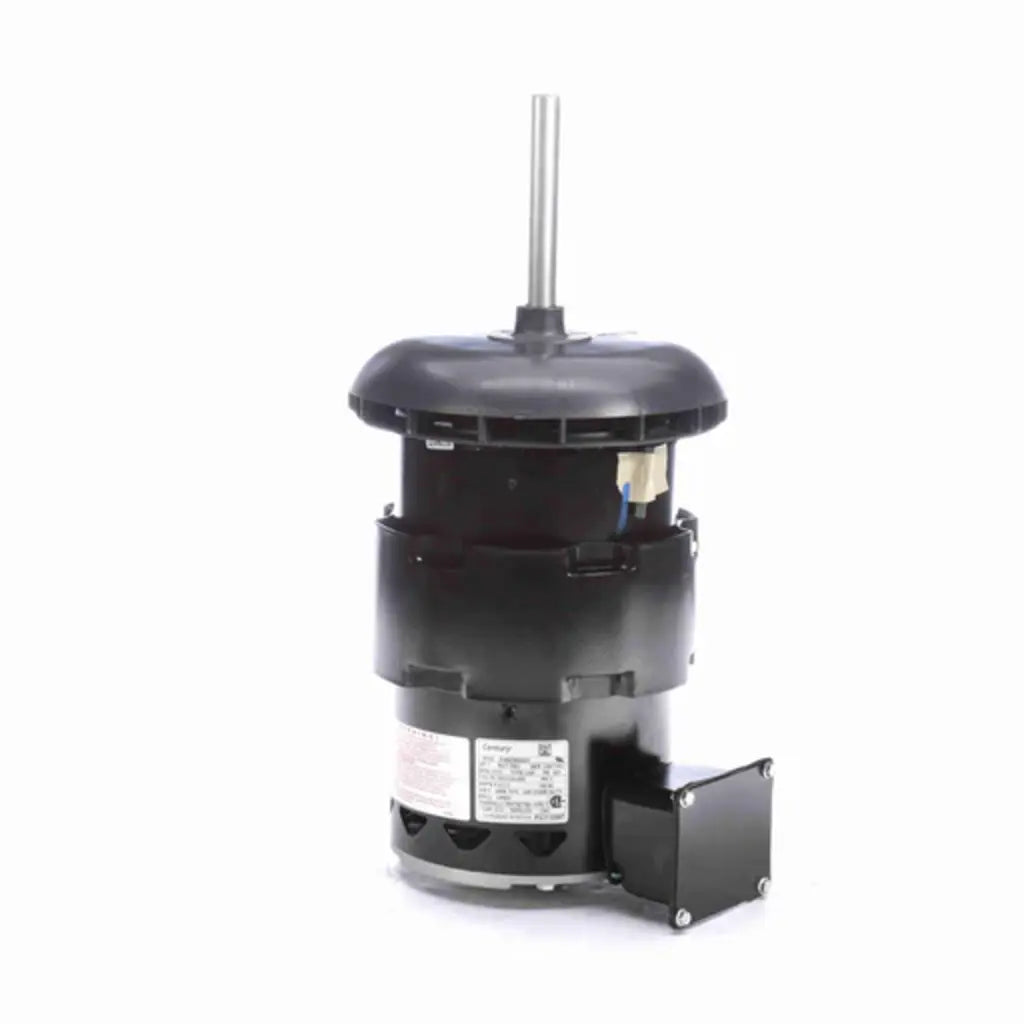

Century FC1106F ODP BB CFM Motor 1HP 1075RPM 3Ph 200-230/460V 48Y

Century FC1106F is a reliable 1 HP three-phase ODP motor with belly band mounting designed for condenser fan applications. Features 200-230/460V dual voltage operation and 5/8" × 4.07" shaft dimensions.

Key Specifications:

Power: 1 HP, Three Phase

Voltage: 200-230/460V

Speed: 1075 RPM (60 Hz)

Frame: NEMA 48Y

Mounting: BB (Belly Band)

Enclosure: ODP (Open Drip Proof)

Application: CFM (Condenser Fan Motor)

Shaft: 5/8" × 4.07"

Capacitor: 25MFD 370V Required
