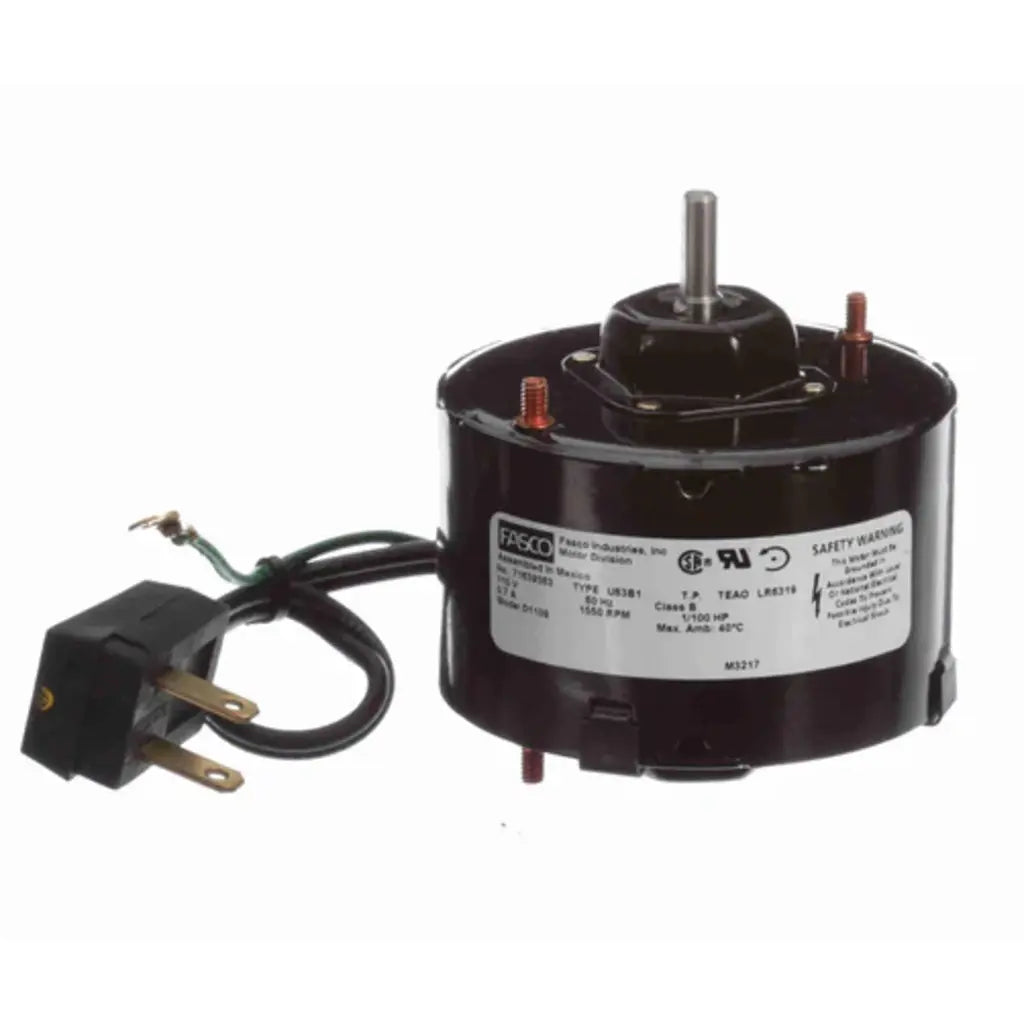

Fasco D1109 3.3" TEAO CCWSE SP Motor 1/100HP 1500RPM 1Ph 115V

Fasco D1109 is a compact 1/100 HP shaded pole motor with TEAO enclosure designed for small appliance and ventilation applications. Features counterclockwise shaft end rotation and reliable 3.3" diameter housing.

Key Specifications:

Power: 1/100 HP, Single Phase

Voltage: 115V

Current: 0.65A

Speed: 1500 RPM (60 Hz)

Rotation: CCWSE (Counterclockwise Shaft End)

Frame: 3.3" Diameter

Enclosure: TEAO (Totally Enclosed Air Over)

Motor Type: SP (Shaded Pole)
