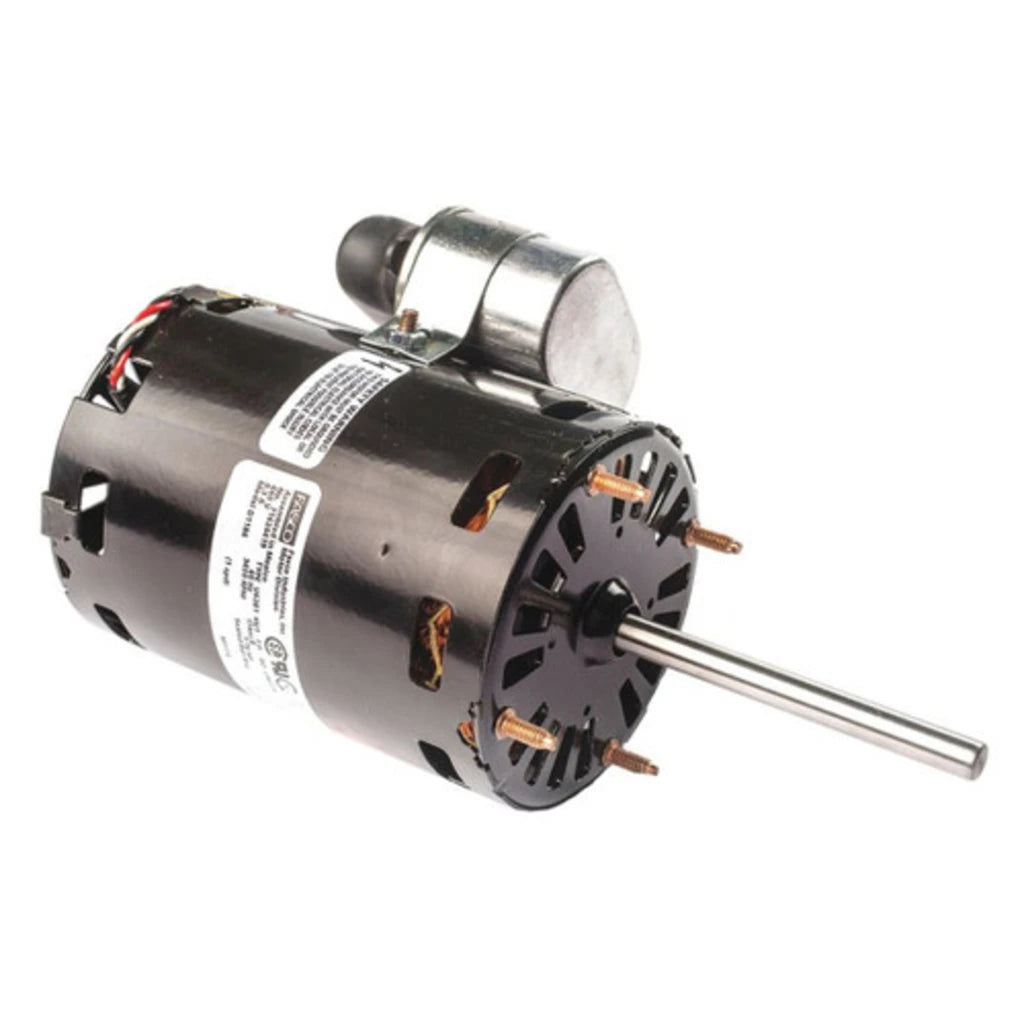

Fasco D1184 OAO CCWSE Draft Inducer Motor 1/16HP 3450RPM 1Ph 460V

Fasco D1184 is a reliable 1/16 HP draft inducer motor designed for HVAC applications. Features permanent split capacitor design with 4 MFD 370V run capacitor (supplied with motor) and thermal protection for safe operation.

Key Specifications:

Power: 1/16 HP, Single Phase

Voltage/Amps: 460V/0.3A

Speed: 3450 RPM (60 Hz)

Frame: 3.3" Diameter

Shaft: 5/16" Diameter with Double Flat, 3.35" Extension

Mounting: Extended Studs Shaft End

Enclosure: OAO (Open Air Over)

Rotation: CCWSE (Counterclockwise Shaft End)

Thermal Protection: Thermally Protected

Insulation Class: B, 40°C Ambient

Bearing: Ball Bearing

Leads: 56" with Spade Terminals
