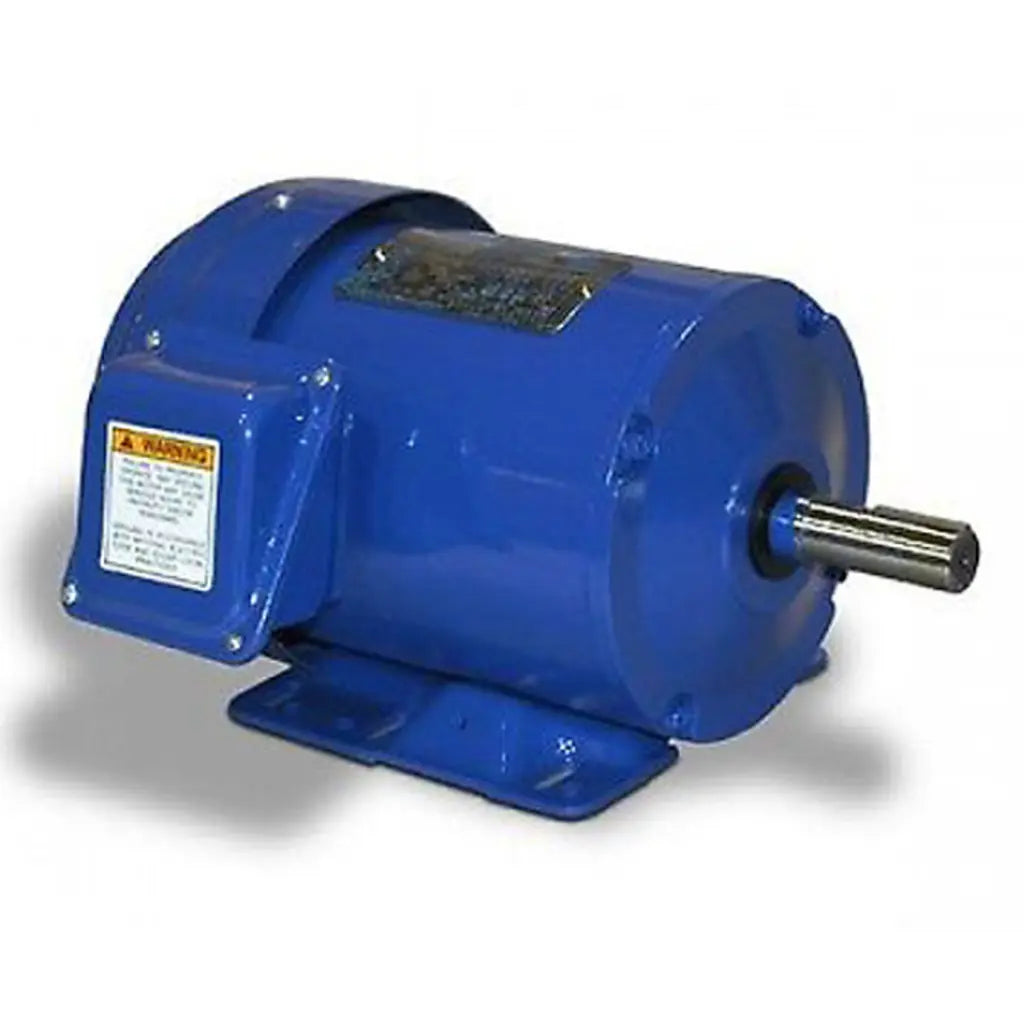

TECO GH0/74 TEFC Electric Motor 3/4HP 1730RPM 3Ph 230/460V 56

TECO-Westinghouse GH0/74 is a premium 3/4 HP three-phase TEFC motor designed for demanding industrial applications. Features rolled steel construction with dual voltage operation (230/460V) and 1730 RPM performance for reliable operation in harsh environments with superior durability and efficiency.

Key Specifications:

Power: 3/4 HP, Three Phase

Voltage: 230/460V

Speed: 1730 RPM (60 Hz)

Frame: NEMA 56

Enclosure: TEFC (Totally Enclosed Fan Cooled)

Mounting: Rigid Foot Mount (F1)

Efficiency: NEMA Premium (81.5%)

Service Factor: 1.15

Insulation Class: F with Class B Temperature Rise

Construction: Rolled Steel Frame with Cast Iron End Brackets

Applications: Fans, Blowers, Compressors, Pumps, HVAC Equipment
